Achieving Innovation.
Our ingenious Tube Clamp provides a convenient solution for comfortably mounting LED lights to your vehicle’s nudge bar. This new innovative design also allows for a non-intrusive clamp mechanism, resulting in the securing nuts and bolts being hidden. The design also enhances the security of your LED light, as the attached tube clamp (and mounted light) is next to impossible to be snatched from your vehicle.
Minimalism Is Key.
We have designed the Tube Clamps to incorporate multiple, diametrically assigned mounting positions. This means you can use the one tube clamp to mount multiple lights. By reducing the excessive need for mounting equipment, we’ve provided a solution for hosting your ideal light combination.
Mastering Originality.
STEDI has, yet again, demonstrated an ability for design at the highest calibre. As the leading brand of specialty LED lighting and accessories in Australia, STEDI have achieved the goal of using proprietary design to produce a masterful device.
The nitty
gritty.

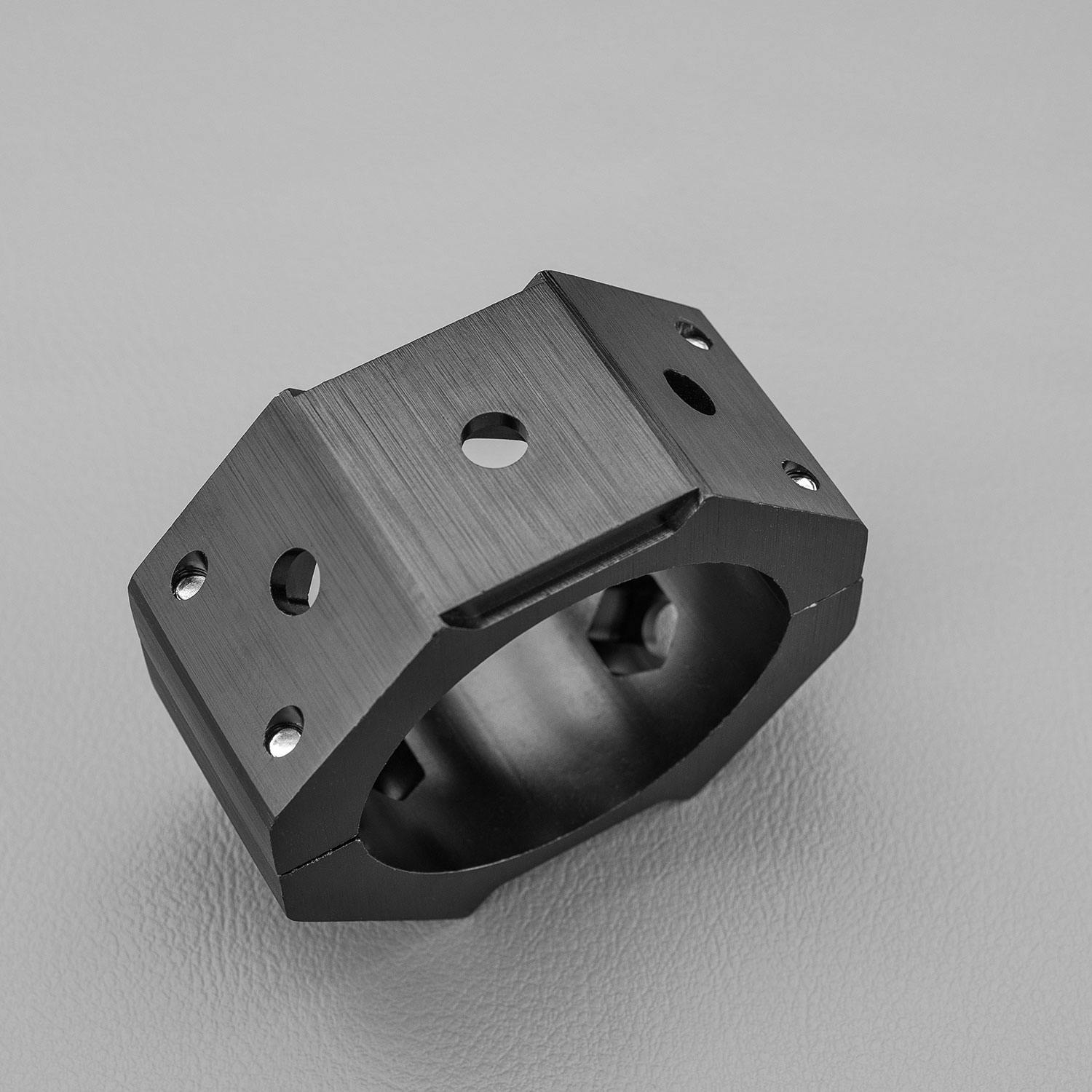

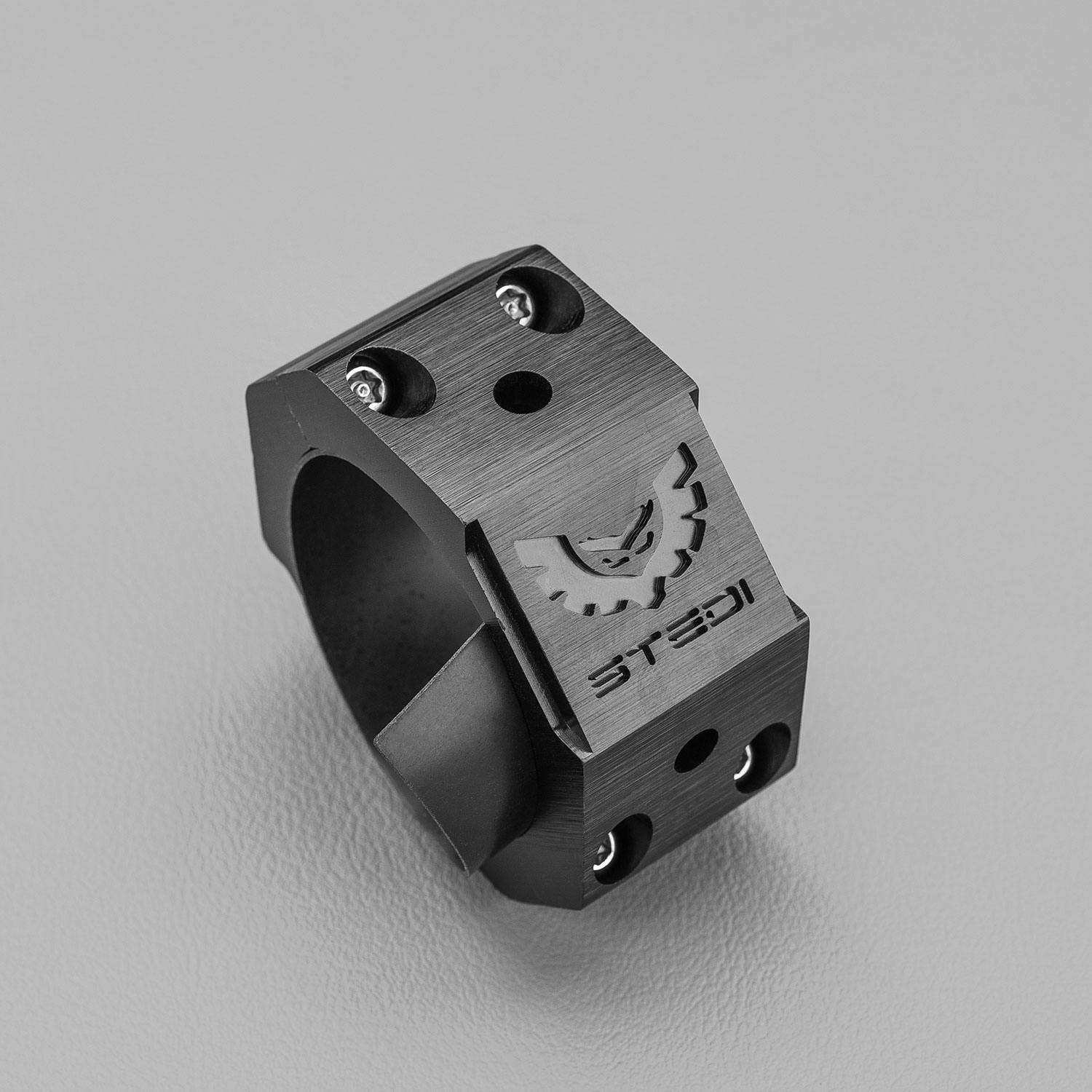

HEX Bull Bar Tube Mounting Brackets.
The HEX Bull Bar Tube Mounting Bracket provides a convenient solution for comfortably mounting LED lights of your vehicle’s nudge bar.
This new innovative design also allows for a non-intrusive clamp mechanism, resulting in the securing nuts and bolts being hidden.
The design also enhances the security of your LED light, as the attached tube clamp (and mounted light) is next to impossible from being snatched.
Available sizes:
- 40-45mm
- 48-53mm
- 60-66mm
- 75-77mm
Registered Design number: 202011687
Tech Specs
DIAMETER(S) | 40-45mm |
48-53mm | |
60-66mm | |
75-77mm |
What’s Included
- 2 x Hex Aluminium Bull Bar Bracket
- 2 x Rubber Inserts
- 8 x M6 Torx Bolts
- 2 x M8 18mm Hex Head Bolt
- 2 x M8 15mm Pan Head Bolt
- 2 x M8 20mm Pan Head Bolt
- 2 x M8 WasherÂ
- Security Torx L Wrench
