COMPACT DESIGN. MEGA PERFORMANCE.
The compact-LED driving light space has been fearfully neglected, with offerings looking as underwhelming as their inability to sustain a compact performance. Enter the all-new STEDI QUAD Pro.
A LEGENDARY
BLOODLINE.

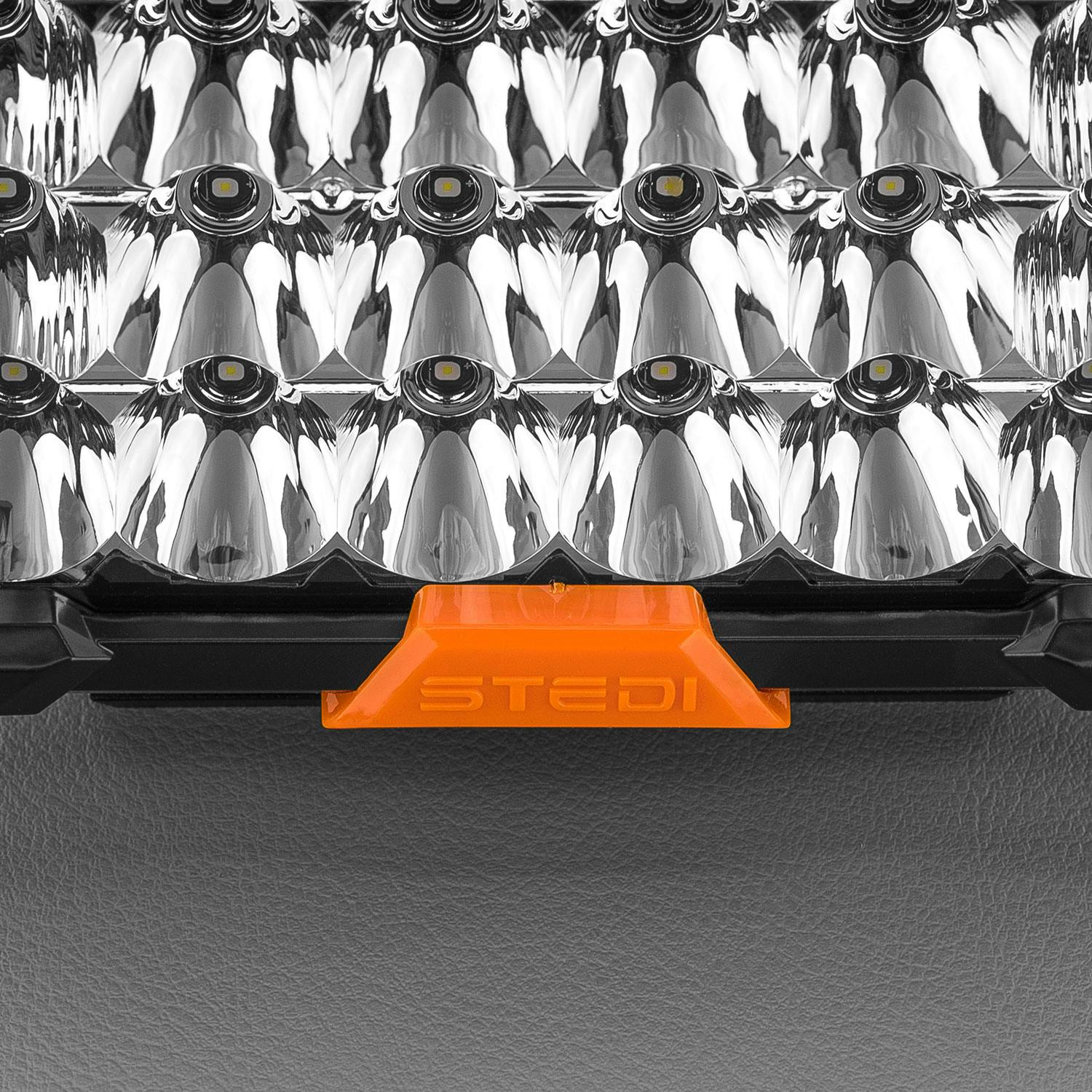

The QUAD Pro is the continuation of the high-calibre class of the PRO bloodline. Sharing the legendary performance of the Type-X Pro and ST3303 Pro, the QUAD Pro utilises the same reflector and LED technology, to deliver an explosive performance.
CUSTOMISABLE
LIKE NO OTHER

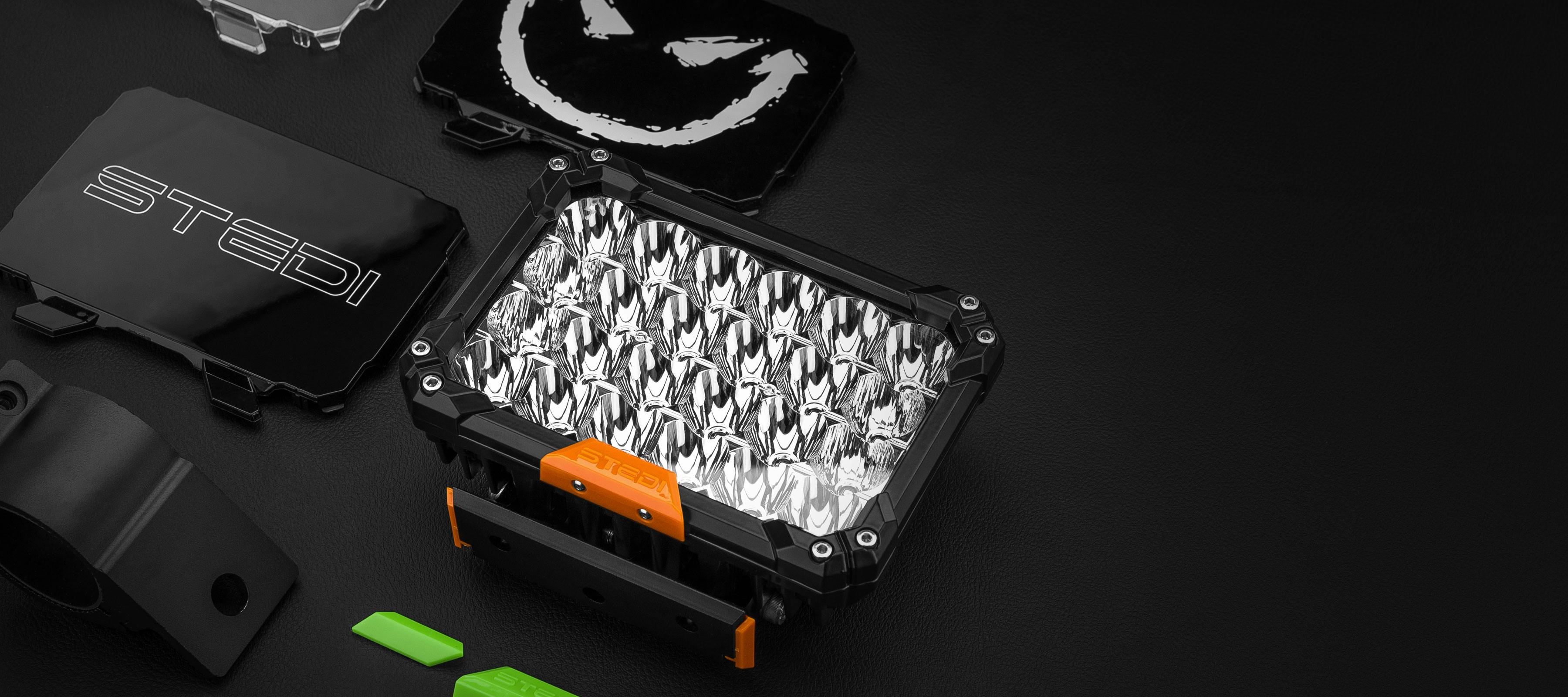

Included in the kit is a pair of STEDI blackout cover, in addition to the orange and grey colour customisation caps. The iconic STEDI Smiley covers are available to purchase separately, as are blue, green, red, and yellow colour caps.
The nitty
gritty.
QUAD Pro LED Driving Lights
The compact housing design offers endless possibilities in terms of mounting locations. We think these are going to be hugely popular as roof-mounted arrays and on bull bars with minimal clearance like the AFN bars.
KEY FEATURES

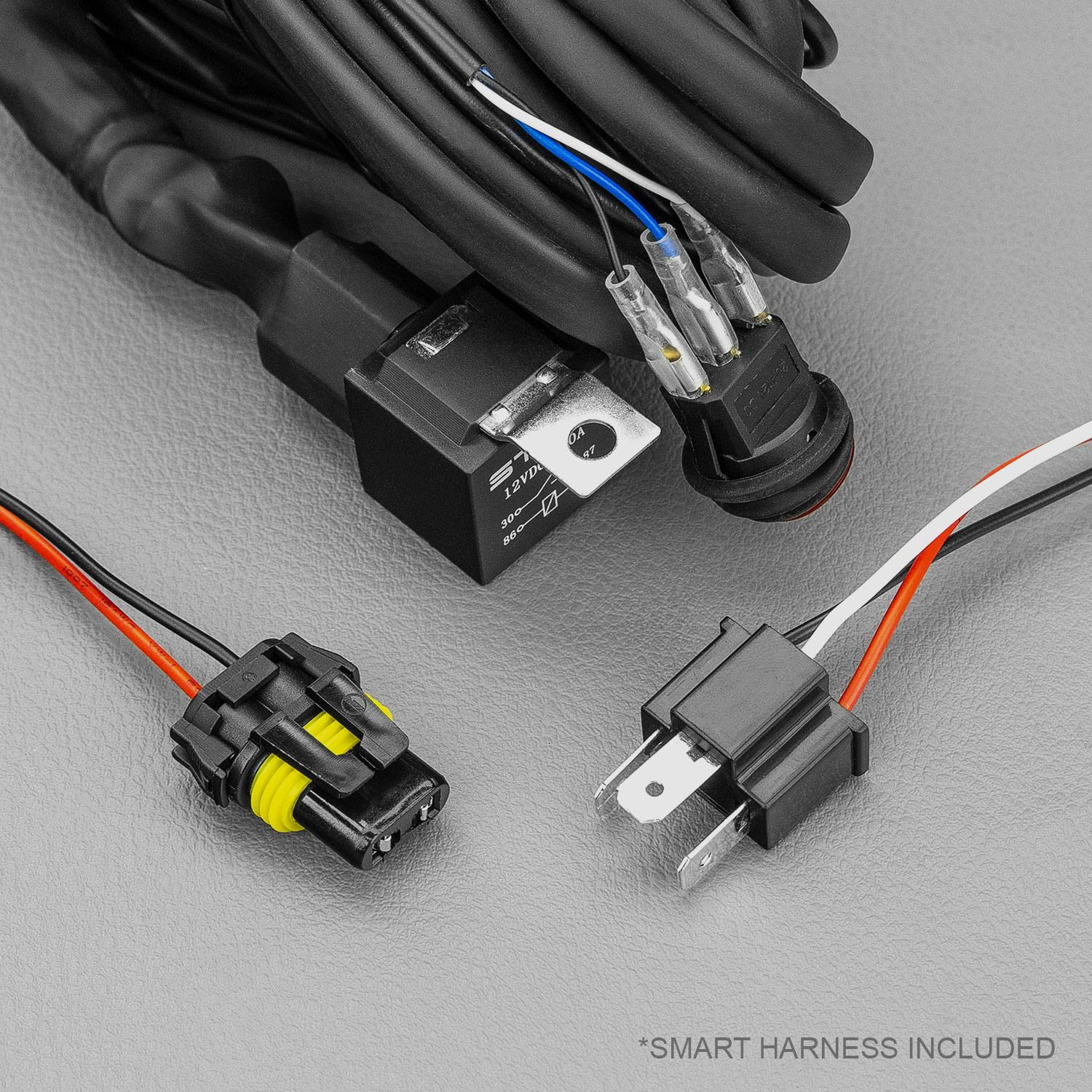

- Includes our legendary Easy-Fit plug and play high beam wiring harness
- IP68 Ingress protection means our QUADS are 100% immersible in water and dust-tight.
- 5700K Colour temperature provides just the right amount of warmth to cut-through air-born particles.
- Environmentally sealed Deutsch DT-2 connectors
- RFI and EMI suppressed circuit design, means no interference with radio or communications equipment.

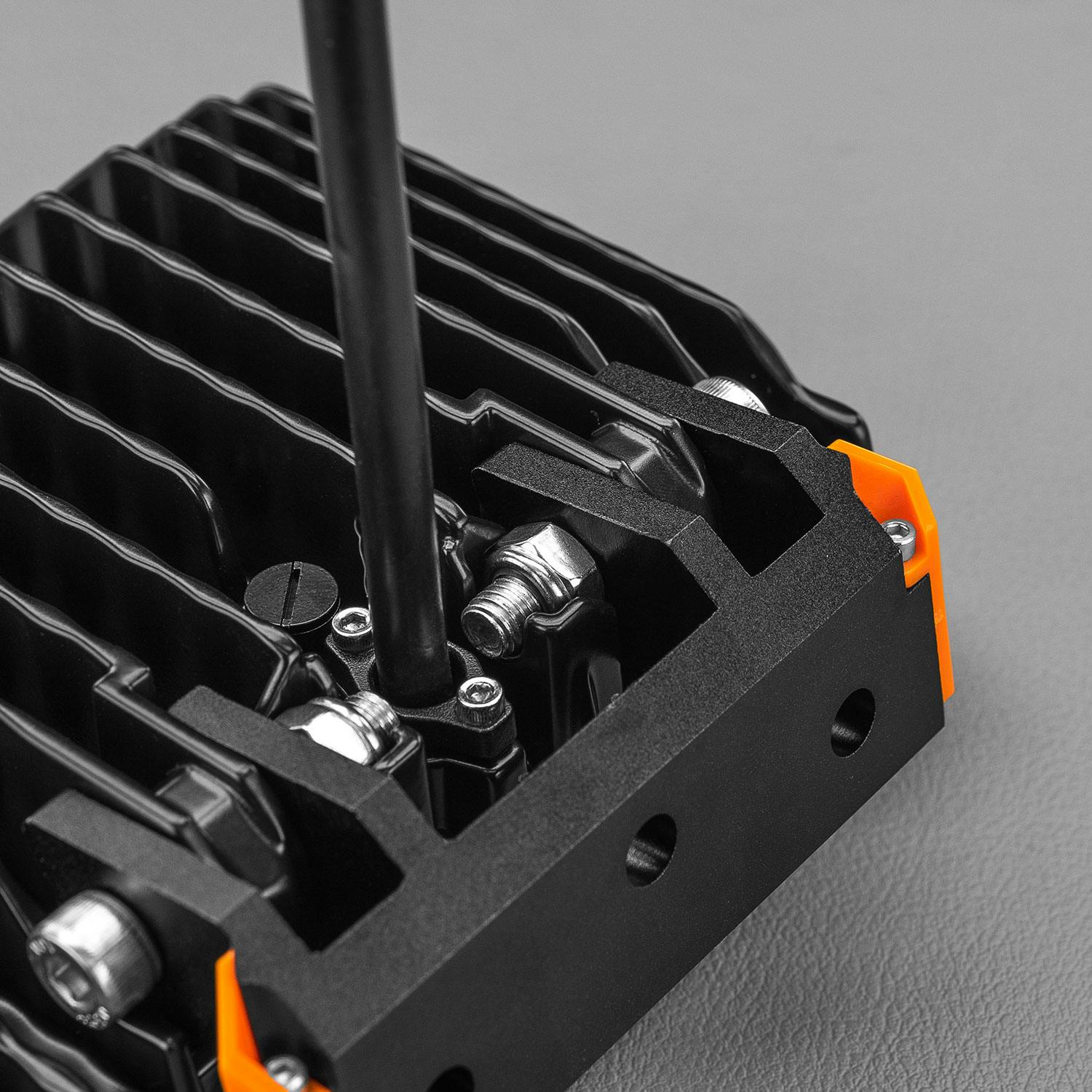

- High-Pressure Die-Cast Bracket
- Spread and Spot beam reflectors built-in.
The price quoted is for a pair includes our legendary Plug & Play Smart Wiring Harness.
Click here to find your vehicle-compatible Piggyback Adapter.
Registered Design 202013629
Tech Specs
| LED | 24 x Oslon High-Flux LED |
| RAW LUMENS | 17,040 (Pair) |
| TESTED LUMENS | 11,360 (Pair) |
| AMP DRAWÂ | 7.4A @ 13.2v (each) |
| POWER DRAW | 97W (each) |
| CANDELA | 693,889cd |
| BEAM PATTERN | 4 x Spread 20 x Pencil Beam |
| INGRESS PROTECTION | IP68 | Submersible up to 3m |
| COLOUR TEMP (CCT)Â | 5700K |
| VOLTAGE COMPATIBILITYÂ | 12v & 24v |
| LUMEN MAINTENANCEÂ | 50,000 LM-80 |
| WEIGHT | 1.4Kg (Including cover) (each) |
| PHOTOMETRIC DATA | |
| 10 m | 6,938 Lx |
| 50 m | 277 Lx |
| 200 m | 17 Lx |
| 300 m | 7.7 Lx |
| 400 m | 4 Lx |
| 500 m | 2.7 Lx |
| 833 m | 1 Lx |
