ELECTRIFYING PERFORMANCE.
At the core of the ST-X 12 Inch you will find world-class A grade 15W reverse facing emitters pushing out 2100 Lumens at a stunning 5000K colour temperature. The 30-degree horizontal beam pattern facilitates maximum illumination at the mid to long-range, all the way out to 1 lux @ 429m, with very little light within the first 80m. The 15-degree vertical spread means minimal light wasted and significantly reduces glare from road signs.
![](https://stedi.imgix.net/media/catalog/product/s/t/st-x-41-raptor-s-7_2.jpg?ixlib=imgixjs-3.4.0)
A CUT ABOVE.
The circuit of the ST-X allows for a max output of 2100 Lm), keeping within the legal for road use in New Zealand and European countries. The built-in amber (2700K) or white (6000K) DRL / Position Light function allows you to stay conspicuous day or night. The hidden placement of the separate positioning light LEDs offers stunning uniformity of light distribution within the light bar.
![](https://stedi.imgix.net/media/catalog/product/d/s/dsc_6913_1.jpg?ixlib=imgixjs-3.4.0)
NEAR INVISIBLE FRAME.
The STEDI name has always been synonymous with cutting edge design. Now, we yet again raise the bar with our all-new edge to edge bonded lens design. If Apple were to design a light bar, this would be it. It’s stunning from every angle.
![](https://stedi.imgix.net/media/catalog/product/s/t/st-x_1.jpg?ixlib=imgixjs-3.4.0)
![](https://stedi.imgix.net/media/catalog/product/d/s/dsc_6911-2_3.jpg?ixlib=imgixjs-3.4.0)
The nitty
gritty.

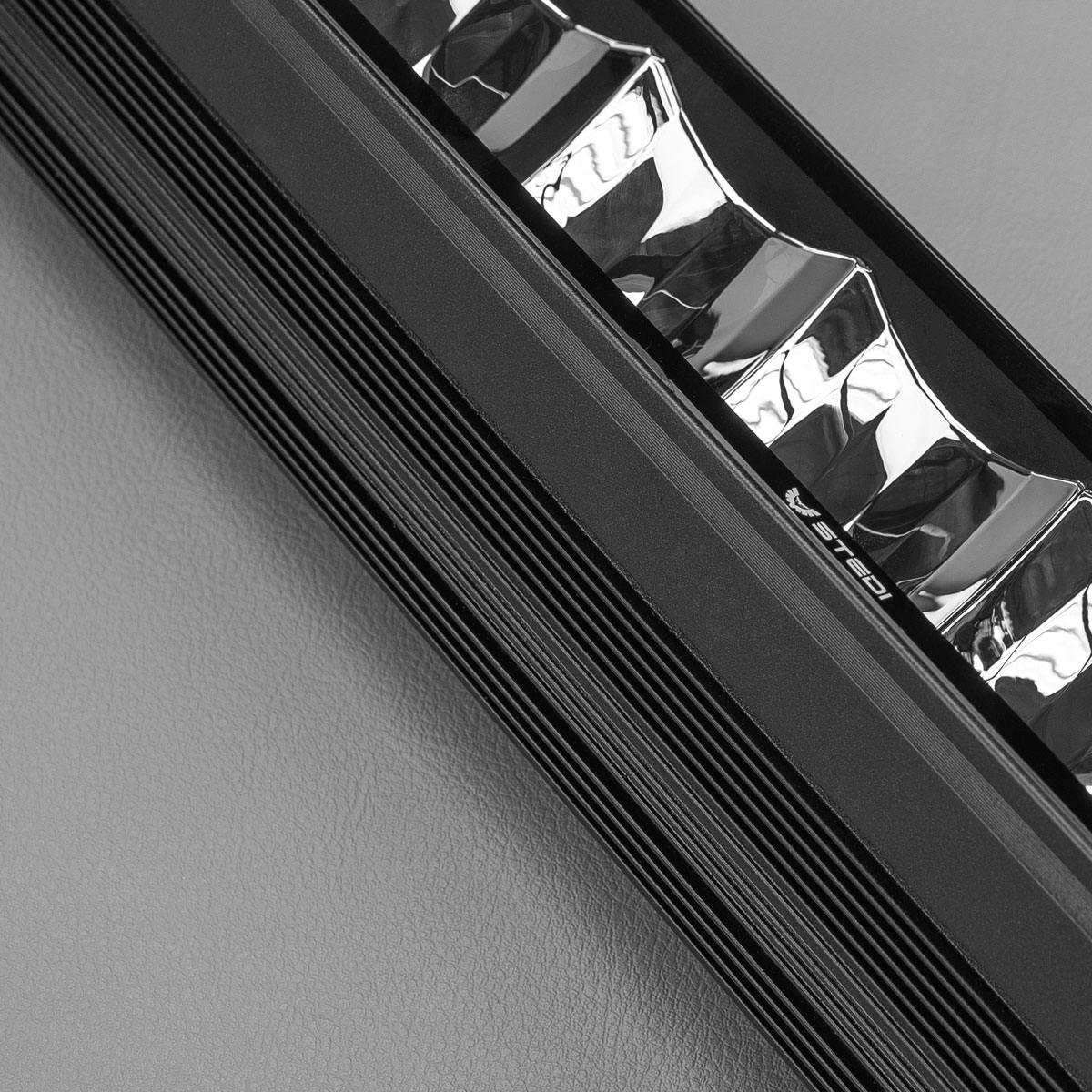

THE BEAM PATTERN If you’re looking for a driving light that offers near-field spread, keep moving, this is not that. The optical properties of the hooded reflector design is best described as high-beam on steroids. The ST-X excels in the high-speed, high-way application when mid to long-range visibility is critical.
- Significantly minimises adverse reflection from road signs
- Controlled vertical spread minimises reflections off of high-mounted road signs.
KEY FEATURES
- 4x 15W LEDs
- LED Parking / Position Light Function (Amber or White built-in)
- Breather allows pressure equalisation when rapid heat up and cool down cycles occur
- Anodized Polyester Powder Coat
- Weatherproof Deutsch® DTP Connector

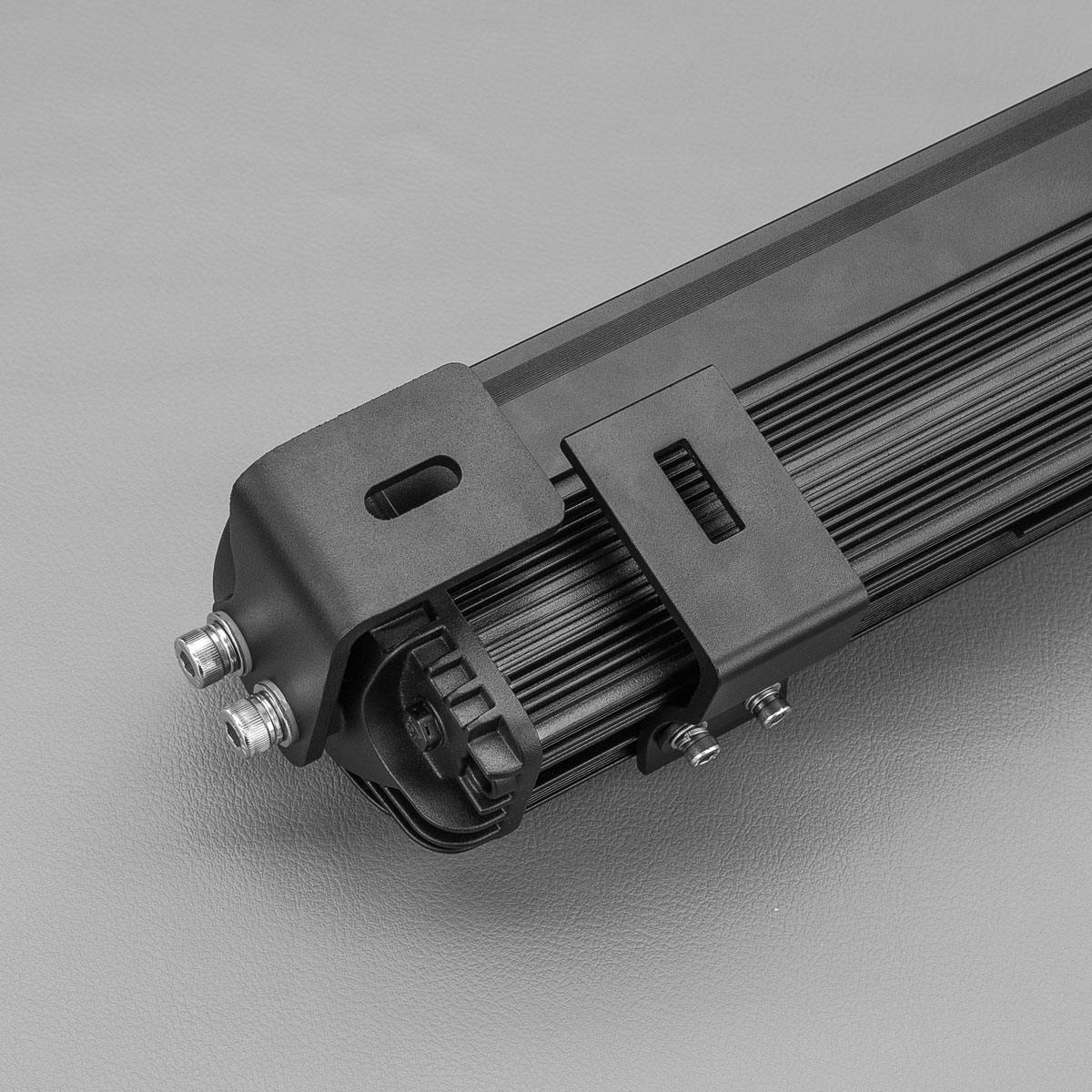

- Includes adjustable Side brackets & Sliding bottom brackets

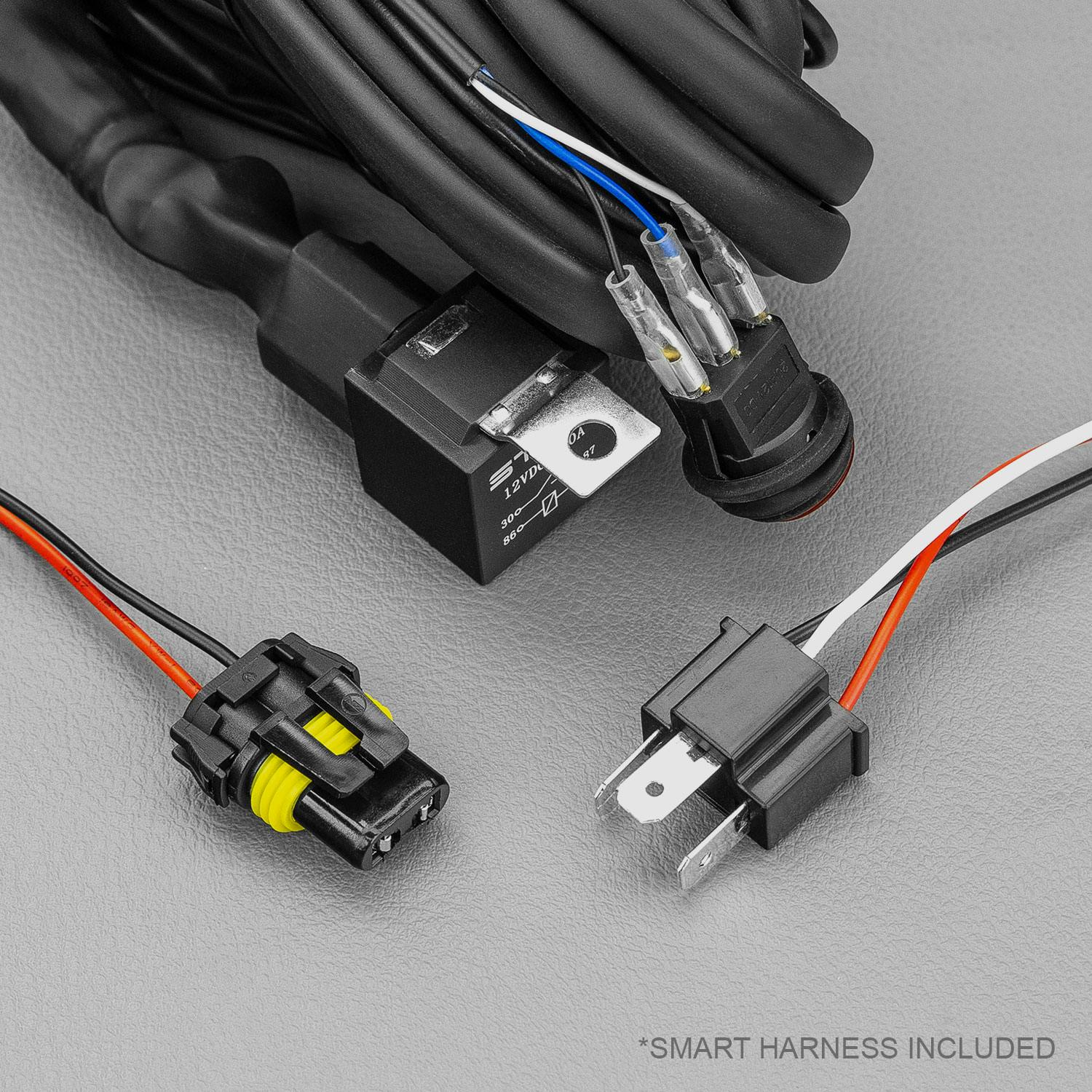

- Includes our Easy-Fit Plug & Play High Beam Wiring Harness with HB3 & H4 adapter (Compatible with both negative and positive switched vehicles)
- Protected against reverse polarity
- Shockproof, IP68 waterproof, UV Shielded
- Protected Against RFI / EMC Interference
- Voltage & current surge protection
- Pulse Width Modulation Thermal Management
Click here to find your vehicle-compatible Piggyback Adapter.
Tech Specs
VOLTAGE | 9-36V |
AMPERES | 4.08A |
POWER | 48.96W |
LUMENS | 2100LM |
COLOUR TEMPERATURE | 5000K |
AMP RATING | 0.1a |
PHOTOMETRIC DATA | 1 lux @ 429m |
LENS MATERIAL | Optical grade, Hard-Coated LEXAN |
HOUSING MATERIAL | 6063 Extrusion |
INGRESS PROTECTION | IP68 |
CANDELAS | 184,164 |
CONNECTOR | 60cm Cable with DTP 4in |
CERTIFICATES | R112, ref. 45 and R10 |
LIFESPAN | 50, 000hrs (LM80) |
OPERATING TEMP | -40°C ~ +60°C |
PRODUCT WEIGHT | 1.6kg |
SHIPPING WEIGHT | 2.1kg |
